Realforce TKL S / R2TLS-USV-IV Discontinued

Capacitive KeyUSVariable WgtSilentSoftwareFull N-Key

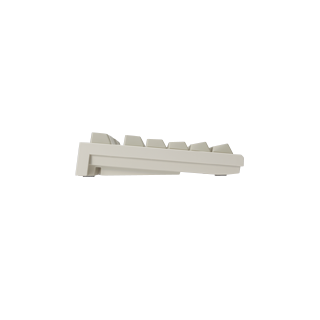

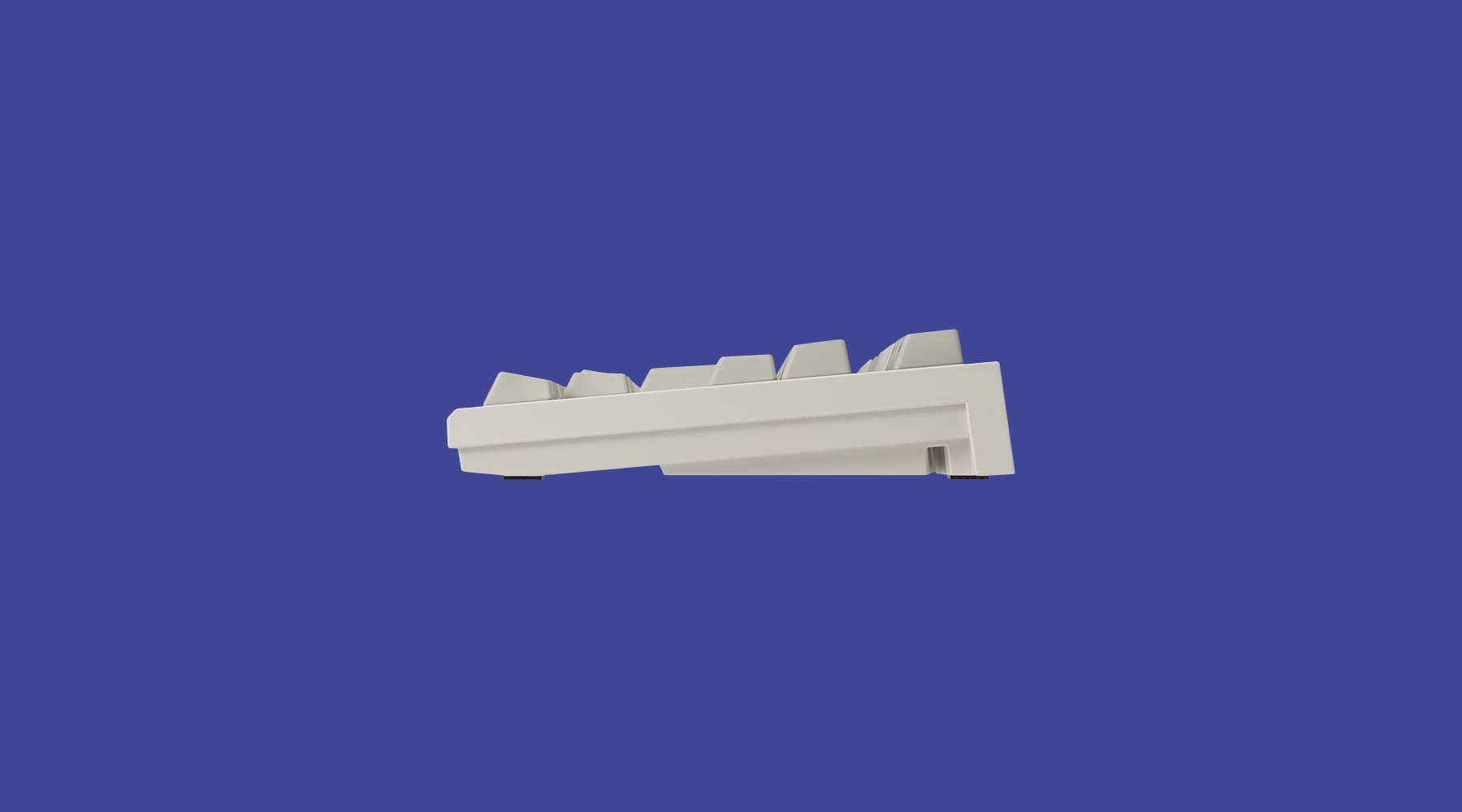

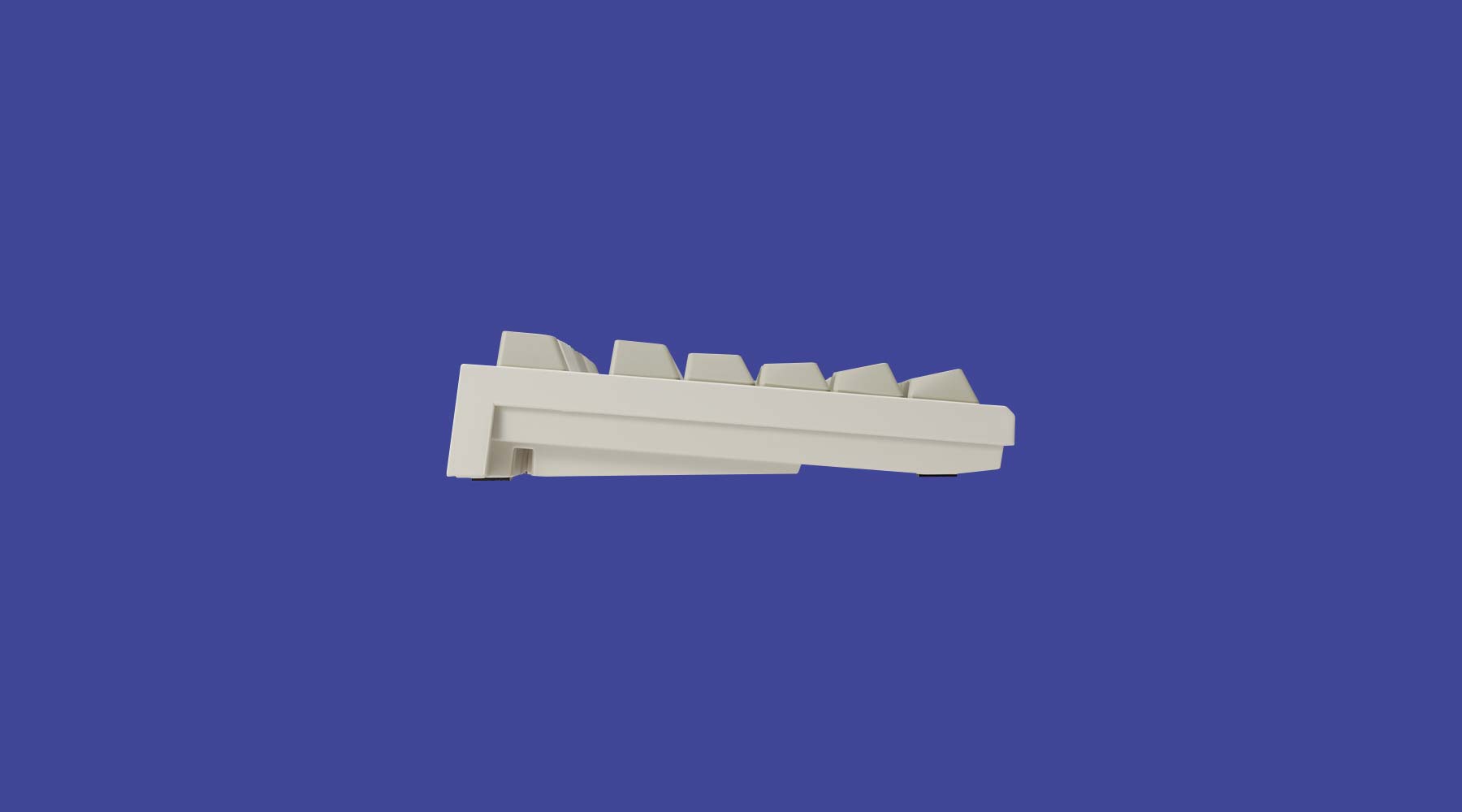

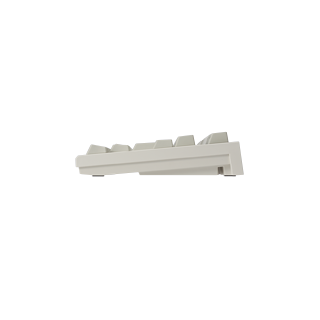

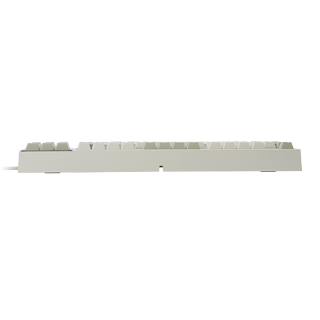

Main Photo
Space-saving design is realized by eliminating number keys

Space-saving design is realized by eliminating number keys

For those with limited desk space, the space-saving design is recommended. The keyboard width is 8.6cm less than ordinary keyboards. By saving 20% of the keyboard space, a larger space for using the mouse becomes available.

Key operation is the same as ordinary keyboards

Key operation is the same as ordinary keyboards

By allocating number keys to other keys, keying in numbers or working on calculations are just as easy as on an ordinary keyboard.

Silent Key Switch

Silent Key Switch

Above signal waves are picked up Standard vs Silent key switches sound noise between 2,500 - 5,000 Hz (Detectable sound frequency). Silent switch can reduced typing sound noise dramatically.

Color changeable LED indicator

Color changeable LED indicator

The color of LED lights for indicating the status of CapsLock, NumLock and so on can be changed by selecting from 7 colors and customized by the keyboard. The brightness of LED indicators is also adjustable.

Cable Slit

Cable can be extended in 3 directions

The cable outlets are placed on the left, right and upper side of the keyboard. Cable outlets in 3 directions allows for optimal placement according to the installation environment.

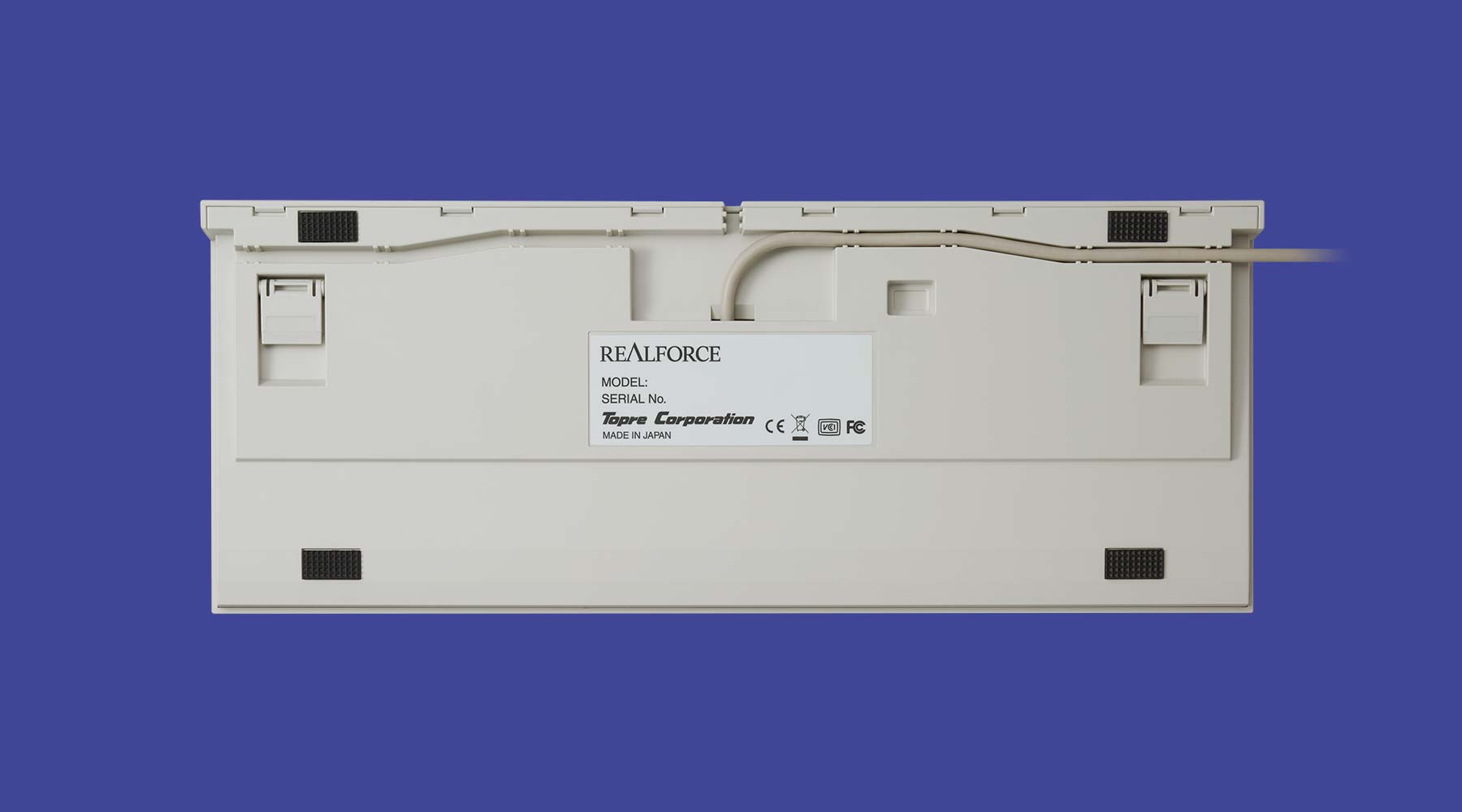

Tilt Stand

More traction and more stability

By increasing the surface area of the bottom rubber pads fourfold, and by adopting a soft resin material on the bottom of the tilt stand, the keyboard is more stable and less likely to accidentally be displaced on glossy surfaces such as glass.

Topre Capacitive Key Switch

Topre Capacitive Key Switch

Superior key touch feel.
No chattering.
No contact mechanism.
Made in Japan.

Full N-key Roll Over

Full N-key Roll Over

No matter how fast you are, you’ll never miss. The Realforce can keep up with any number of keystrokes and ensure you’re always in control.

Step Sculpture

Ergonomic Form Factor

The step sculpture design allows for smooth movement across keys and comfortable typing over long play time.

Force Diagram

Force Diagram

45g Silky-Smooth keystroke.

Key Life Time

Key Life Time

Each Topre key switch is tested to clear 50 million keystrokes.

Made in Japan

Commitment to quality, durability, and technological sophistication.

Spec

PrintSublimation printing
Key Life Time50 million times
Weight1.1Kg
Dimensions142mm x 369mm x 39mm
LayoutUS layout 87 keys
Cable Length1.7m / 5.6feet
Key Weight30g, 45g, 55g Soft tactile feeling
Key Travel4mm
Key ShapesStep scultpture
N-Key RolloverFull N Key rollover
InterfaceUSB
Country of OriginMade in Japan, Designed in Japan
ContentsKeyboard, Warranty card
